6AG1331-7NF10-2AB0 Siemens S7-300
Excellent
Based on over 4600+ reviews
Part Specifications
Manufacturer:
Siemens
Product Family:
SIPLUS S7-300 SM 331
HS Code:
85389091
EAN:
4025515139911
SKU:
6AG1331-7NF10-2AB0
Country of Origin:
DE
Product Weight:
0.328 KG
Packaging Height:
5.00 CM
Packaging Length:
13.00 CM
Packaging Width:
15.00 CM
i
Express delivery available
i
Full 12-month warranty
i
Fast global shipping options
For more information on how your data is processed and stored by EU Automation please read our privacy policy.
Need to know something specific? Check our FAQ's
Find quick answers to common questions about parts, orders, shipping, and support—available 24/7 to help you move faster.
What happens next?
Our simple 3-step process to get what you need
1. Submit enquiry
Fill out the form above with your requirements.
2. Receive a quote
Get detailed pricing and availability within 2 hours.
3. Order & ship
Place your order and we'll prepare for immediate dispatch.
Product description

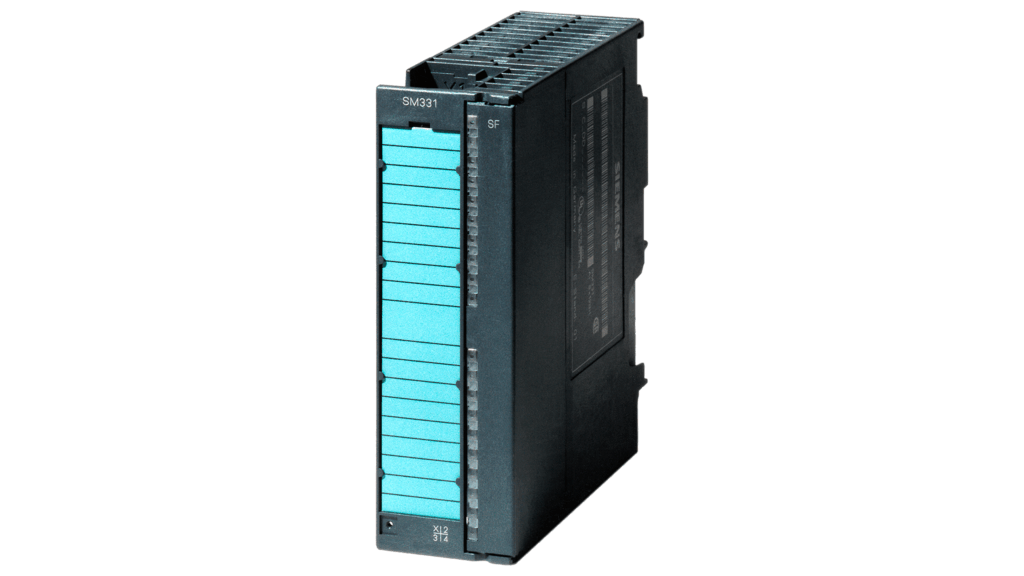

6AG1331-7NF10-2AB0 Siemens SIPLUS S7-300 SM 331
The 6AG1331-7NF10-2AB0 is part of Siemens’ SIPLUS range, designed for enhanced resilience and extended temperature performance. The 6ES7331-7NF10-0AB0 is an analogue input module. It features conformal coating, which makes it suitable for industrial environments. This is particularly important in settings where dust, moisture, and temperature fluctuations can affect standard hardware.
Technical highlights
- Form Factor: 40-pole analog input module
- Inputs: 8 isolated analog channels
- Supported Signals:
- ±5 V / ±10 V
- 1–5 V
- ±20 mA
- 0/4–20 mA
- Resolution: 16-bit accuracy
Performance:
- 4-channel mode: 10 ms conversion
- 8-channel mode: 23 ms conversion
- Isolation: Single rooting (60 V COM)
- Operating Range: -25 °C to +60 °C
- Coating: Conformal protection against harsh environmental conditions
The SIPLUS SM 331 (6AG1331-7NF10-2AB0) is designed to be fast and precise, unlike many other conventional AI modules. For uses where precise measurement is critical to product quality, its rapid channel switching enables real-time signal capture.
This product is ideal for companies that face continuous issues with electrical noise, humidity, or dust because of its extended operating life thanks to the conformal coating. This module ensures precise process monitoring and control when coupled with high-resolution data capture.
Industrial applications
- Process control in harsh manufacturing environments
- Integration into monitoring systems requiring fast, precise analog signal capture
- Energy management and utility monitoring solutions
- Legacy systems still reliant on S7-300 series hardware
Obsolescence consideration
Modules from the SM 331 family, such as 6AG1331-7NF10-2AB0, and the rest of the Siemens S7-300 series are approaching planned obsolescence. Although these units are still in use and readily available, future replacements or migration plans should be considered in the long run. This ensures continued system stability as spare parts gradually become less accessible.
