Product description

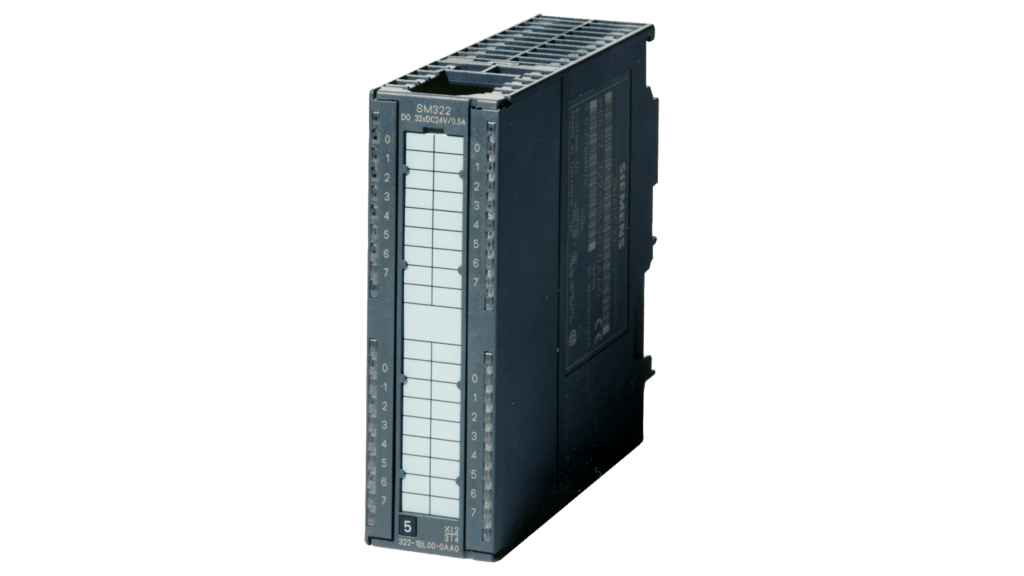

6AG1322-5HF00-4AB0 Siemens SIPLUS S7-300 SM 322 Relay Output Module
As a dependable member of the SIPLUS S7-300 SM 322 family, the Siemens 6AG1322-5HF00-4AB0 is engineered to handle difficult automation tasks. There are eight digital outputs (DQ) on this module that are based on relays. The 40-pole connector allows for a high degree of adaptability for managing AC and DC loads.
Performance at a glance:
- Relay switching capacity: 24 V DC and 120–230 V AC, up to 5 A per channel
- Built-in RC filter for overvoltage protection, reducing component stress and extending equipment life
- Operating range: 0 °C to +60 °C, ideal for industrial environments
- Weight: 0.356 kg – compact yet robust
- Conformal coating to guard against condensation, dust, and corrosive atmospheres
When other modules might fail owing to extreme environmental conditions, this design keeps everything running smoothly.
Benefits for industrial applications
The 6AG1322-5HF00-4AB0 provides the versatility needed in manufacturing, infrastructure, and process industries. The direct switching of higher-voltage loads is made possible by the relay outputs, which eliminate the need for extra interface relays and simplify and reduce the cost of the panel. Maintaining electrical isolation using segregated digital outputs makes your control system run more reliably and safely.
Early failure identification, simplified troubleshooting, and reduced downtime are all ways in which the module’s integrated diagnostic functions increase system reliability.
This SIPLUS version, which is based on the 6ES7322-5HF00-0AB0, has robust conformal coating upgrades from Siemens, making it much more durable in locations where regular modules would fail.
This module offers consistent performance and long-term stability, making it ideal for managing high-load devices such as actuators and contactors.
Product lifecycle notice
It has been set that the 6AG1322-5HF00-4AB0 and the rest of the Siemens S7-300 and ET 200M family will approach EOL on October 1, 2025. Before the deadline, users should get replacement parts.
